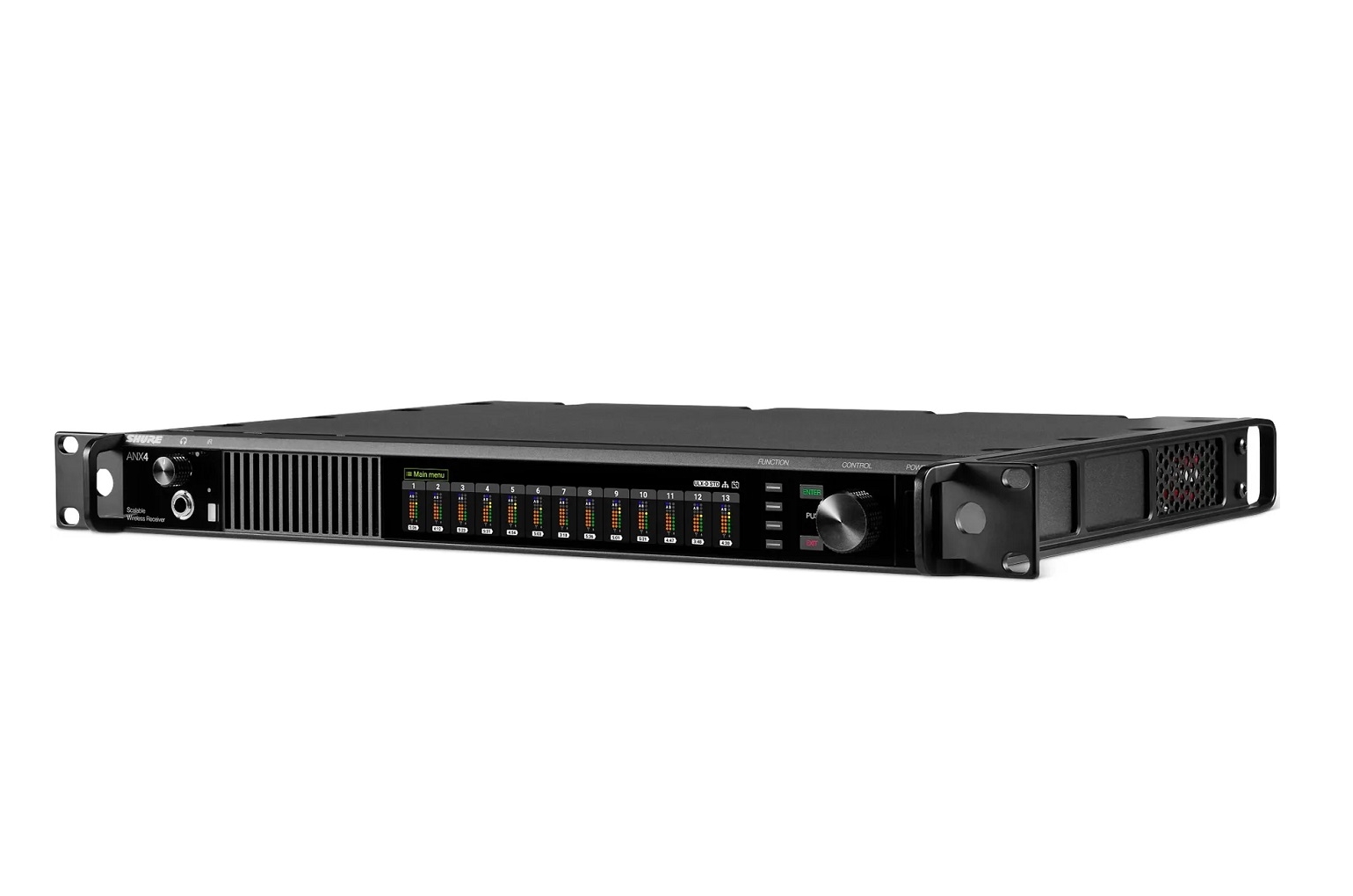

SHURE ANX4
Scalable Wireless Receiver
SHURE ANX4
Scalable Wireless Receiver
Description
The ultimate high-tier, high channel count wireless receiver, Shure ANX4 receives up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space. Delivering maximum flexibility, ANX4 does not ship preconfigured with active wireless channels, allowing you the opportunity to purchase channels in single- and four-channel increments and activate the exact number of channels you need. Licenses can be activated in one ANX4 and later removed and activated in a different ANX4 as needs change. ANX4 channel licenses can be purchased through the same authorized suppliers ANX4 hardware units are sold (or at Shure.com/anx4) and managed via your ShureCloud user account. Whether you operate ANX4 in Axient Digital or ULX-D transmission mode, ANX4 maximizes your budget, rack space, and rack weight in delivering large wireless audio channel counts in a single rack design.
Product highlights:
- Scalable Wireless Receiver for use with Axient Digital and ULX-D wireless systems
- Receives up to 16 channels of Axient Digital or 24 channels of ULX-D
- Channel licenses are available in single- and four-channel options (sold separately)
- Wide tuning range covers all Axient Digital and ULX-D options (except ULX-D 902 MHz band)
- All Axient Digital or ULX-D features included

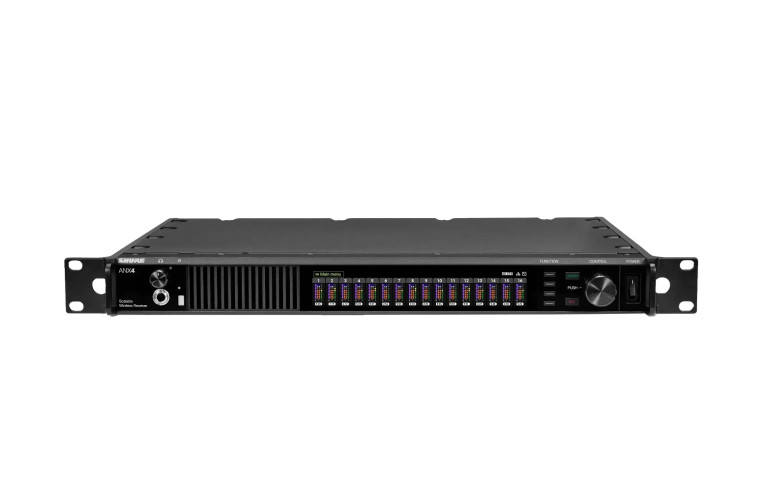

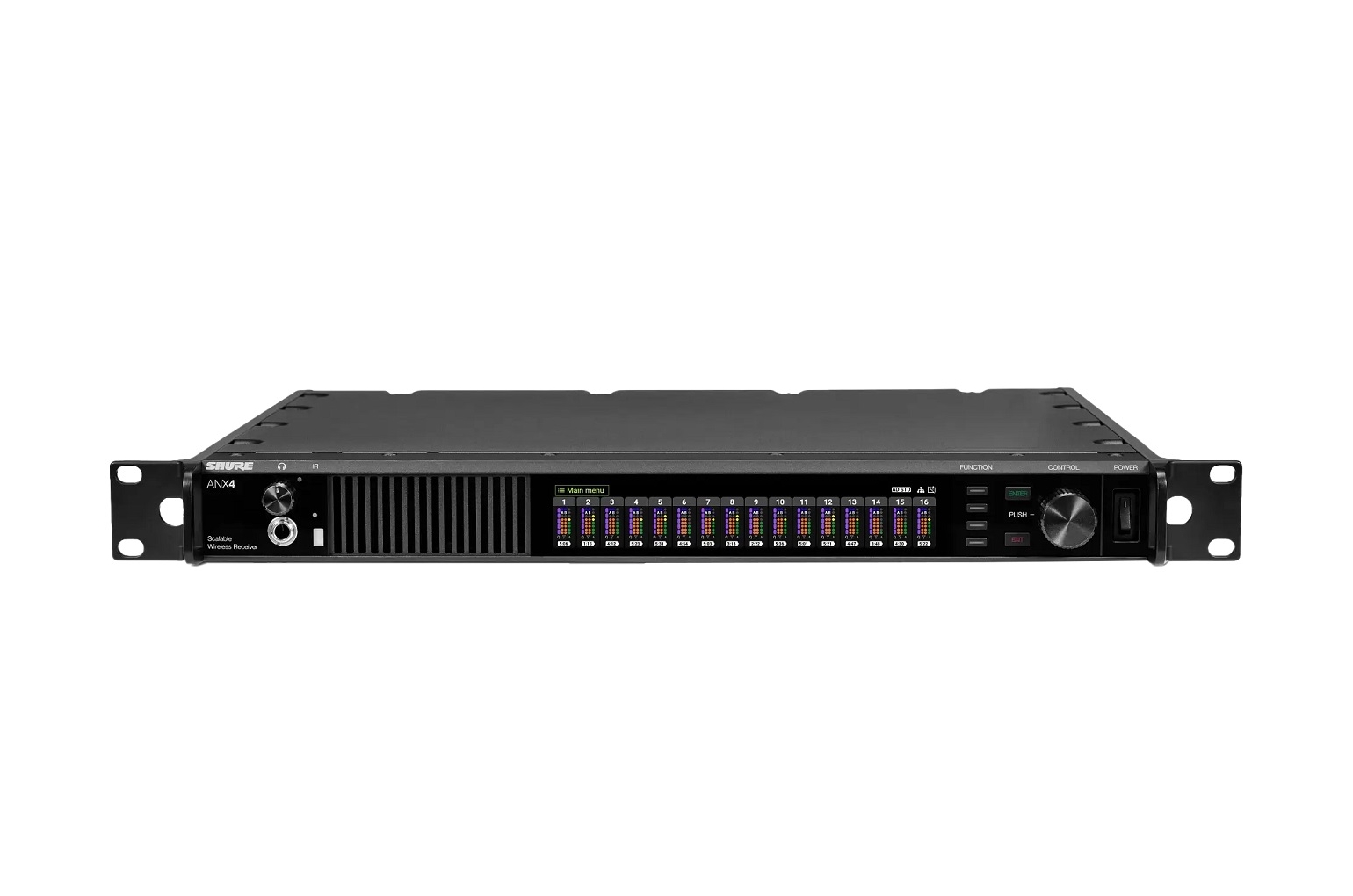

- Large, 6.6-inch front panel color display
- Five-segment Channel Quality meter displays RF signal-to-noise
- ¼" front-panel headphone connector for monitoring with Dante Browse
- Streamlined and cost-saving antenna setup for large-scale wireless deployment scenarios

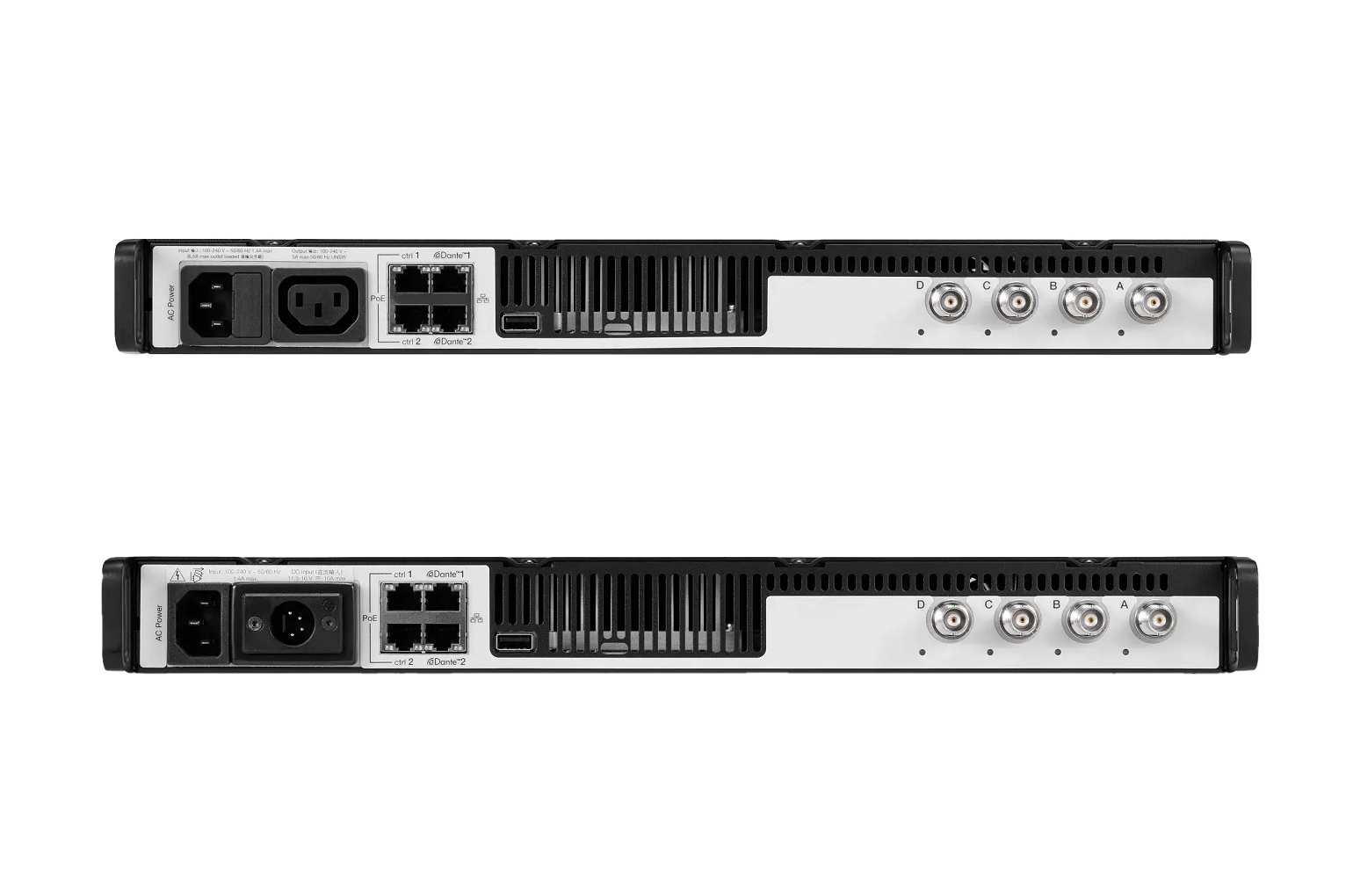

- 4 x Ethernet ports for network control and Dante/AES67 digital output options
- 4 x coaxial RF antenna input connectors support multiple frequency bands
- Networked control with Shure Wireless Workbench
- Available in AC and DC powered versions
